Establishing Reusable Code

Who am I

• My name is Zoë Farmer
• CU graduate with a BS in Applied Math and a CS Minor
• I’m a co-coordinator of the Boulder Python Meetup
• I’m a big fan of open source software
• http://www.dataleek.io
• @TheDataLeek, github.com/thedataleek, gitlab.com/thedataleek
• D3 Data Visualizer at Talus Analytics - http://www.talusanalytics.com

What’s the problem?

• D3 doesn’t have the popularity of Node, Angular, Python, <insert popular framework here>, etc.
• Documentation can be sparse.
• Most of us (myself included) learn from terse bl.ocks.org demos.
• Because of this, most D3 code tends to be write-only.

TL;DR – D3 doesn’t lend itself to reuse

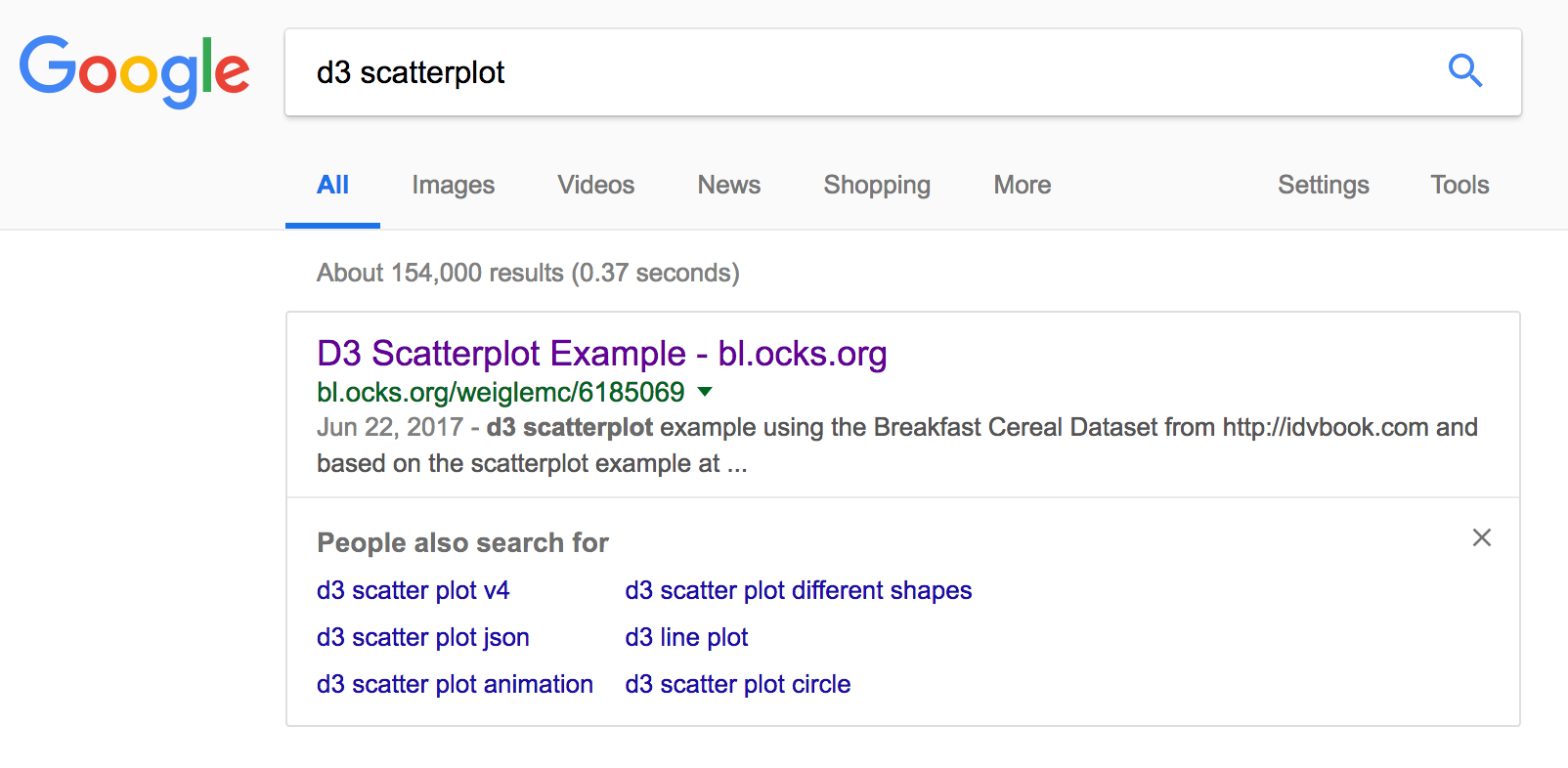

Example - Scatterplot

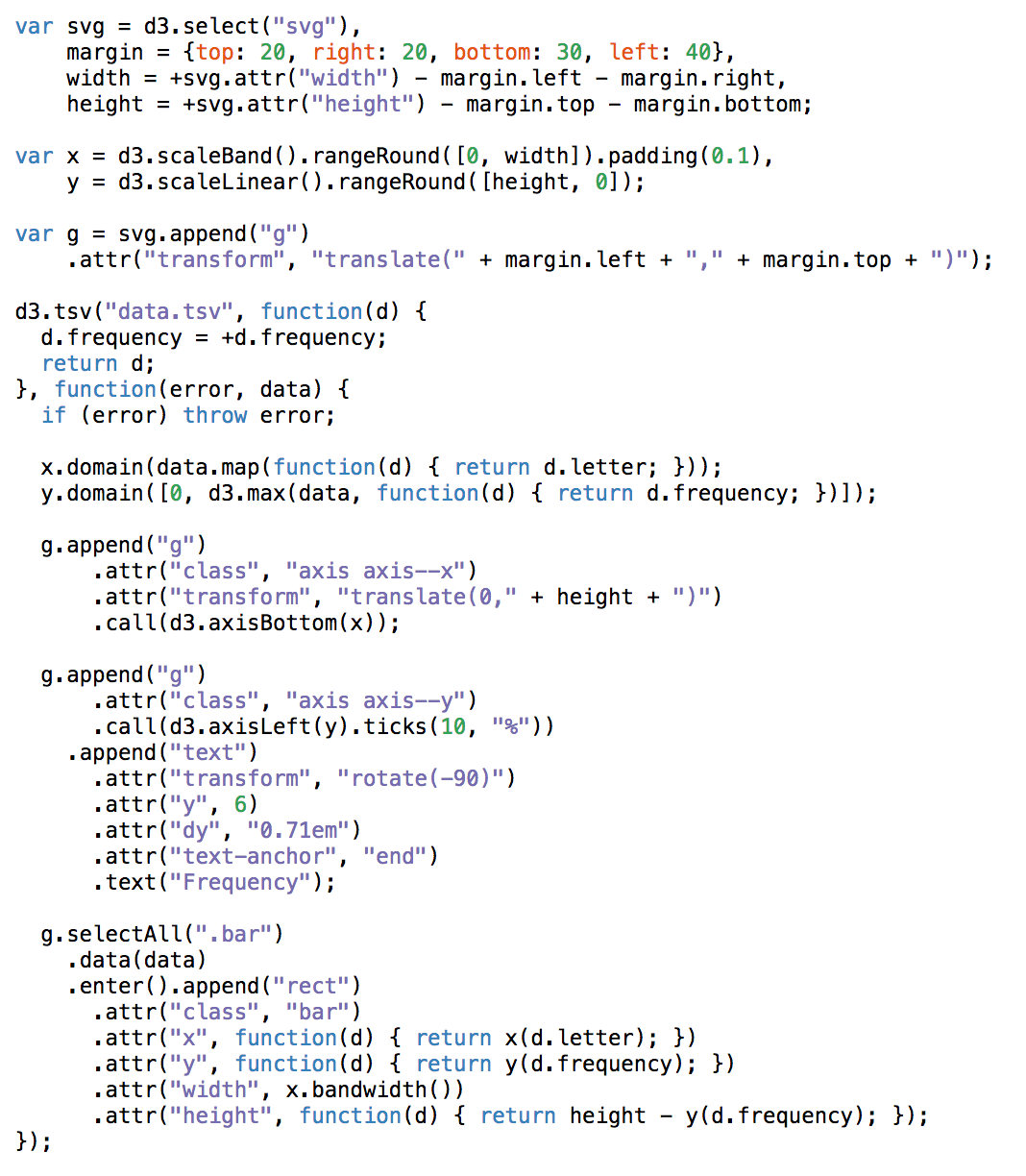

And the code?

http://bl.ocks.org/weiglemc/6185069

So what can we do?

• Use classes
• Separate interaction from drawing
• Write with reuse in mind

Use Classes

class Chart {
    constructor(selector, params={}) {
        this.selector = selector;
        this.svg = d3.select(selector).append('svg');
        this.chart = this.svg.append('g').classed('chart', true);
        this.params = params;
    }
    newGroup(name) {
        if (this[name]) { this[name].remove() }
        this[name] = this.chart.append('g').classed(name, true);
    }
}
class Bar extends Chart { ... }

Separate Interaction

• Add invisible clickable elements
• You can make them bigger than your data
  • Helpful for small elements
  • Intuitive for user
  • Don’t need to worry (for the most part) about binding interactions to elements

Write with reuse in mind

• Most charts share 75% of their code with something you’ve probably already done.
• Use similar (preferably the same) data format for each method
• Write generic methods that you can reuse

class Bar extends Chart {
...
    drawBars(data) {
        this.newGroup('bars');
        this.bars
            .selectAll('rect')
            .data(data)
            .enter()
            .append('rect')
            .attr('transform', d => `translate(${this.xScale(d.key)})`)
            .attr('width', this.xScale.bandwidth())
            .attr('height', d => this.yScale(d.value))
            .attr('fill', d => d.properties.fill)....
    }
...
}

Takehome

• Use classes
• Separate interaction from drawing
• Write with reuse in mind

It’s more work up front for each chart, but it will pay dividends.

Questions?

Buy me a beer, or bug me at

• dataleek.io
• @TheDataLeek
