MLP Function Approximation

A Multi-Layer Perceptron (MLP) is a feedforward neural network: a stack of linear transformations interleaved with nonlinear activations. This notebook trains one to approximate \(f(x) = x^2\) and visualises the full convergence trajectory across training.

domain = np.linspace(-10, 10, 1000)
func = lambda x: x**2
D = torch.Tensor(domain.reshape(-1, 1))
target = torch.Tensor(func(domain).reshape(-1, 1))

Target Function

We want to learn \(f : \mathbb{R} \to \mathbb{R}\), specifically \(f(x) = x^2\), sampled at 1000 points over \([-10, 10]\). It is smooth, symmetric, and requires a nonlinear model to fit — a single linear layer can only represent it as a constant.

class Model(nn.Module):
    def __init__(self, dim: int = 64):
        super().__init__()
        self.dim = dim
        self.unit = nn.Sequential(
            nn.Linear(1, dim),
            nn.GELU(),
            nn.Linear(dim, dim * 4),
            nn.GELU(),
            nn.Linear(dim * 4, dim),
            nn.GELU(),
            nn.Linear(dim, 1),
        )

    def forward(self, x):
        y = self.unit(x)
        return y


models = []
for epochs in [0, 10, 20, 30, 40, 50, 100, 200, 500]:
    model = Model().to("cpu")
    models.append([model, epochs])
    optimizer = torch.optim.Adam(model.parameters(), lr=1e-3)
    criterion = nn.MSELoss()
    for i in range(epochs):
        optimizer.zero_grad()
        outputs = model(D)
        loss = criterion(outputs, target)
        loss.backward()
        optimizer.step()

Architecture

The network maps a scalar \(x\) through four linear layers with GELU activations, with layer widths \(1 \to d \to 4d \to d \to 1\) and \(d = 64\):

\[x \;\xrightarrow{\,W_1\,}\; \text{GELU} \;\xrightarrow{\,W_2\,}\; \text{GELU} \;\xrightarrow{\,W_3\,}\; \text{GELU} \;\xrightarrow{\,W_4\,}\; \hat{y}\]

The 4× middle expansion mirrors the MLP sub-layer in transformer blocks. GELU (Gaussian Error Linear Unit) smoothly gates each neuron by the probability that it would survive a Gaussian noise mask:

\[\text{GELU}(x) = x \cdot \Phi(x)\]

where \(\Phi\) is the standard-normal CDF. Unlike ReLU, GELU is smooth everywhere and has nonzero gradient for negative inputs, which empirically benefits deep networks.

Training

We minimise mean squared error:

\[\mathcal{L} = \frac{1}{N} \sum_{i=1}^{N} \bigl(\hat{y}_i - y_i\bigr)^2\]

Gradients flow back through every layer via the chain rule. The Adam optimiser maintains per-parameter first and second moment estimates to adaptively scale each update:

\[m_t = \beta_1 m_{t-1} + (1-\beta_1)\,g_t \qquad v_t = \beta_2 v_{t-1} + (1-\beta_2)\,g_t^2\] \[\theta_t \leftarrow \theta_{t-1} - \frac{\alpha}{\sqrt{\hat{v}_t}+\varepsilon}\,\hat{m}_t\]

Ten independent models are trained for \(\{0,\,10,\,20,\,30,\,40,\,50,\,100,\,200,\,500\}\) epochs to capture the full convergence trajectory from random init to convergence.

Convergence Visualisation

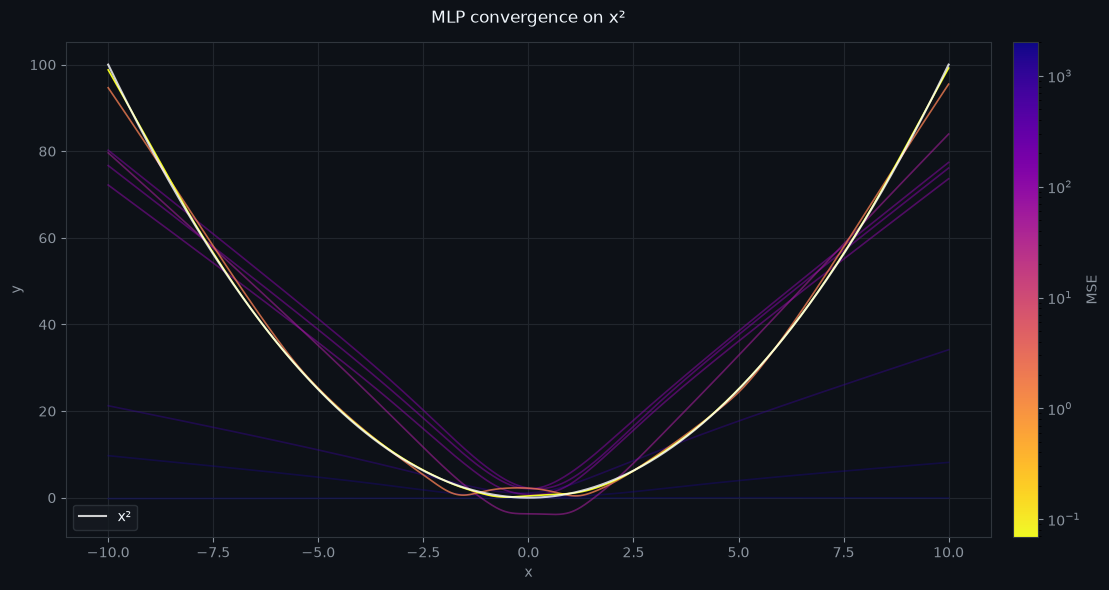

Each line below is an independently trained model, coloured by its final MSE on a log scale — errors span several orders of magnitude between an untrained network and a converged one:

• Bright (yellow end of plasma): low MSE, well-converged
• Dark + faded (purple end): high MSE, untrained or early training

The white line is the ground truth \(f(x) = x^2\).
