Character-Level Transformer
A single-layer transformer trained on next-character prediction in a cyclic pangram, walking through every architectural component — causal masking, residual connections, layer normalisation — with geometric visualisations of what the model learns.
import marimo as mo
import torch
import torch.nn as nn
import numpy as np
import matplotlib.pyplot as plt
import torch.nn.functional as F
Character-Level Transformer
A transformer is a sequence-to-sequence model built from two alternating sub-layers: self-attention (which lets each position read from past positions) and a position-wise feed-forward network (which processes each position independently after the information has been mixed).
Here we train a single-layer transformer to predict the next character in a cyclic sequence — the phrase “sphinx of black quartz judge my vow” repeated indefinitely. Given the preceding 8 characters, predict the 9th. The task is toy-sized, but it exercises every part of the architecture: token embeddings, positional encodings, causal masking, residual connections, and layer normalisation.
The Task
The training corpus is one phrase — “sphinx of black quartz judge my vow” — repeated cyclically. This is a pangram: it contains all 26 letters of the alphabet plus a space, giving a vocabulary of 27 tokens. The phrase is 35 characters long.
The model receives a sliding window of 8 consecutive characters and must predict the next character at every position simultaneously. This is causal next-token prediction: for each position \(t\) in the window, predict \(x_{t+1}\) using only \(x_0 \ldots x_t\). The loss is cross-entropy averaged over positions \(0 \ldots T-2\).
Because the phrase is only 35 characters, there are exactly 35 distinct 8-grams in the cyclic sequence — none repeat. The task therefore has a perfect solution: the model only needs to memorise which character follows each unique 8-gram. The theoretical minimum loss is 0. In practice the model is small (32 dimensions, 1 layer) and only trained for 1000 steps, so it will not fully converge — but the loss trajectory shows it learning fast.
A random model predicts uniformly over 27 characters, giving cross-entropy \(\log 27 \approx 3.30\). Any loss well below that means the model has learned structure.
phrase = "sphinx of black quartz judge my vow"
token_lookup = {c: i for i, c in enumerate(sorted(list(set(phrase))))}
lookup_token = {i: c for c, i in token_lookup.items()}
n_letters = len(token_lookup)
def sequence(batch_size: int = 128):
return torch.tensor(
[token_lookup[phrase[i % len(phrase)]] for i in range(batch_size)],
dtype=int,
)
sequence()
class BasicTransformer(nn.Module):
def __init__(self, ndim: int = 32, sequence_length: int = 8):
super().__init__()
self.ndim = ndim
# lookup table mapping each character index to a learned ndim-dimensional vector
self.embedding = nn.Embedding(n_letters, ndim)
# lookup table mapping each position index (0..seq_len-1) to a learned ndim vector;
# added to token embeddings so the model can distinguish same token at different positions
self.position_embedding = nn.Embedding(sequence_length, ndim)
# Q projection: "what is this token looking for?" — transforms each token into query space
self.W_q = nn.Linear(ndim, ndim)
# K projection: "what does this token have to offer?" — transforms each token into key space
self.W_k = nn.Linear(ndim, ndim)
# V projection: the actual content retrieved when a query matches a key
self.W_v = nn.Linear(ndim, ndim)
# mixes the attended values before they are added back into the residual stream
self.attn_projection = nn.Linear(ndim, ndim)
# normalizes each token vector to zero mean and unit variance after the attention residual add
self.norm1 = nn.LayerNorm(ndim)
# feed-forward layer, post-attention
self.ffn = nn.Sequential(
# expand to 4x width — standard transformer convention
nn.Linear(ndim, ndim * 4),
# smooth nonlinearity; lets the FFN represent nonlinear functions
nn.GELU(),
# project back down to match the residual stream dimension
nn.Linear(ndim * 4, ndim),
)
# normalizes after the FFN residual add, same role as norm1
self.norm2 = nn.LayerNorm(ndim)
# projects each position's ndim vector to a logit over every character in the vocabulary
self.out = nn.Linear(ndim, n_letters)
# upper-triangular boolean mask: True at position [i,j] where j > i (future tokens);
# registered as a buffer so it moves to the right device with the model but is not a trainable parameter
self.register_buffer(
"causal_mask",
torch.triu(
torch.ones(sequence_length, sequence_length), diagonal=1
).bool(),
)
def forward(self, x):
# x: [B, T] integer token indices
# tokens: [B, T, ndim] — dense vector per token
tokens = self.embedding(x)
# positions: [T, ndim] — one vector per position slot
positions = self.position_embedding(torch.arange(x.shape[1]))
# embedded_x: [B, T, ndim] — fuse what the token is with where it is
embedded_x = tokens + positions
# Q: [B, T, ndim] — what each position is querying for
Q = self.W_q(embedded_x)
# K: [B, T, ndim] — what each position advertises as its content
K = self.W_k(embedded_x)
# V: [B, T, ndim] — what each position actually delivers if selected
V = self.W_v(embedded_x)
# scores: [B, T, T] — entry [b, i, j] scores how much position i wants to attend to position j
scores = (Q @ K.transpose(-2, -1)) / (self.ndim**0.5)
# replace scores where j > i with -inf so softmax assigns them exactly zero weight
scores = scores.masked_fill(self.causal_mask, float("-inf"))
# convert scores to a probability distribution over visible positions; each row sums to 1
weights = scores.softmax(dim=-1) # [B, T, T]
# each position's output is a weighted blend of all value vectors it was allowed to see
attn = weights @ V # [B, T, ndim]
# project attention output, add it back to the input (residual), then normalize;
# the residual lets gradients flow directly to the embedding layer, bypassing attention
attn_x = self.norm1(embedded_x + self.attn_projection(attn))
# apply FFN to each position independently, add residual, normalize;
# FFN does not mix information across positions — that already happened in attention
attn_x = self.norm2(attn_x + self.ffn(attn_x))
# result: [B, T, n_letters] — one logit vector per position
result = self.out(attn_x)
return result
Architecture
The model has three stages, each wrapped in a residual connection and layer normalisation.
Token + position embedding. Each character index maps to a learned \(d\)-dimensional vector
via nn.Embedding. A second embedding adds a position vector so the model can distinguish
the same character at different sequence positions. The two are summed:
Causal self-attention. Three linear projections (\(W_q\), \(W_k\), \(W_v\)) map each position’s embedding to a query, key, and value. The attention score between positions \(i\) and \(j\) is:
\[A_{ij} = \frac{Q_i \cdot K_j}{\sqrt{d}}\]A causal mask sets \(A_{ij} = -\infty\) for \(j > i\) before softmax, so position \(i\) can only draw from positions \(0 \ldots i\). The output \(\sum_j \alpha_{ij} V_j\) is projected, added back to the embedding (residual), and normalised.
Feed-forward network. Each position’s vector is passed independently through a two-layer MLP with \(4\times\) hidden expansion and GELU activation — identical structure to the MLP notebook. The FFN does not mix positions; that already happened in attention.
A final linear layer maps each position’s \(d\)-vector to logits over the character vocabulary. The loss is cross-entropy at positions \(0 \ldots T-2\) predicting tokens \(1 \ldots T-1\).
Training
We minimise cross-entropy between the model’s predictions at positions \(0 \ldots T-2\) and the true next tokens at positions \(1 \ldots T-1\):
\[\mathcal{L} = -\frac{1}{T-1} \sum_{t=0}^{T-2} \log p_\theta(x_{t+1} \mid x_0, \ldots, x_t)\]The optimizer is Adam (lr = 1e-3). Each step draws a fresh batch of 64 windows of length 8, sampled cyclically from the phrase. Because the phrase is only 35 characters and we draw 512 tokens per step, every window is seen many times per epoch — this is a memorisation task, not a generalisation one.
What to expect. The loss starts near \(\log 27 \approx 3.30\) (uniform random over the 27-token vocabulary) and should fall quickly as the model learns the most predictable transitions — characters that are almost always followed by one specific character. Perfectly fitting all 35 distinct 8-grams would require more capacity and steps than this setup provides, so the final loss will be above 0 but well below 3.30.
SEQ_LEN = 8
BATCH_SIZE = 64
N_STEPS = 1000
model = BasicTransformer()
optimizer = torch.optim.Adam(model.parameters(), lr=1e-3)
losses = []
for step in range(N_STEPS):
flat = sequence(BATCH_SIZE * SEQ_LEN)
x = flat.reshape(BATCH_SIZE, SEQ_LEN)
logits = model(x) # [B, T, n_letters]
loss = F.cross_entropy(
logits[:, :-1].reshape(-1, n_letters),
x[:, 1:].reshape(-1),
)
optimizer.zero_grad()
loss.backward()
optimizer.step()
losses.append(loss.item())
def build_loss_curve():
img_file = mo.notebook_dir() / "transformer_loss_curve.png"
bg = "#0d1117"
fig, ax = plt.subplots(figsize=(9, 4))
fig.patch.set_facecolor(bg)
ax.set_facecolor(bg)
ax.plot(losses, color="#58a6ff", linewidth=1.4)
ax.set_xlabel("step", color="#8b949e")
ax.set_ylabel("cross-entropy loss", color="#8b949e")
ax.set_title(f"training loss — final: {losses[-1]:.4f}", color="#f0f6fc")
ax.tick_params(colors="#8b949e")
ax.grid(True, color="#21262d", linewidth=0.8)
for spine in ax.spines.values():
spine.set_color("#30363d")
plt.tight_layout()
plt.savefig(img_file, dpi=150)
return img_file
mo.image(build_loss_curve(), width=500)
The curve starts high and drops rapidly in the first ~200 steps as the model picks up the most common transitions, then flattens as it runs into the capacity limit of a single attention head at 32 dimensions. The final loss reflects how many of the 35 8-grams the model has successfully memorised: each correctly predicted transition contributes 0 to the loss; each uncertain one contributes proportionally to its remaining entropy.
If the curve plateaus above ~2.0 the model has barely learned anything — try more steps
or a larger ndim. If it reaches below ~1.0 it has learned most of the predictable
structure in the phrase.
Geometry After Training
Two views into what the model has learned: what each position attends to in a sample sequence, and where the model has placed each character in embedding space.
def build_geometry_plots():
img_file = mo.notebook_dir() / "transformer_geometry.png"
SEQ_LEN = 8
# extract attention weights for one sample sequence
flat = sequence(SEQ_LEN)
x = flat.unsqueeze(0) # [1, T]
with torch.no_grad():
tokens = model.embedding(x)
positions = model.position_embedding(torch.arange(SEQ_LEN))
embedded_x = tokens + positions
Q = model.W_q(embedded_x)
K = model.W_k(embedded_x)
scores = (Q @ K.transpose(-2, -1)) / (model.ndim**0.5)
scores = scores.masked_fill(model.causal_mask, float("-inf"))
attn_weights = scores.softmax(dim=-1)[0].numpy() # [T, T]
seq_chars = [repr(lookup_token[int(flat[i])]) for i in range(SEQ_LEN)]
# PCA of character embeddings
emb = model.embedding.weight.detach().numpy() # [n_letters, ndim]
emb_c = emb - emb.mean(0)
_, _, Vt = np.linalg.svd(emb_c, full_matrices=False)
proj = emb_c @ Vt[:2].T # [n_letters, 2]
char_labels = [repr(lookup_token[i]) for i in range(n_letters)]
bg = "#0d1117"
fig, axes = plt.subplots(1, 2, figsize=(15, 5))
fig.patch.set_facecolor(bg)
# --- left: causal attention heatmap ---
ax = axes[0]
ax.set_facecolor(bg)
im = ax.imshow(attn_weights, cmap="plasma", vmin=0, vmax=1, aspect="auto")
ax.set_xticks(range(SEQ_LEN))
ax.set_xticklabels(seq_chars, fontsize=9, color="#8b949e")
ax.set_yticks(range(SEQ_LEN))
ax.set_yticklabels(seq_chars, fontsize=9, color="#8b949e")
ax.set_xlabel("attends to (key)", color="#8b949e")
ax.set_ylabel("query position", color="#8b949e")
ax.set_title("Causal attention weights", color="#f0f6fc", fontsize=11)
for spine in ax.spines.values():
spine.set_color("#30363d")
ax.tick_params(colors="#8b949e")
cb = fig.colorbar(im, ax=ax)
cb.ax.tick_params(colors="#8b949e")
cb.outline.set_edgecolor("#30363d")
# --- right: character embedding PCA ---
ax = axes[1]
ax.set_facecolor(bg)
ax.scatter(proj[:, 0], proj[:, 1], color="#58a6ff", s=45, zorder=3)
for i, c in enumerate(char_labels):
ax.annotate(
c,
(proj[i, 0], proj[i, 1]),
xytext=(4, 4),
textcoords="offset points",
fontsize=9,
color="#8b949e",
)
ax.set_xlabel("PC 1", color="#8b949e")
ax.set_ylabel("PC 2", color="#8b949e")
ax.set_title(
"Character embedding space (PCA)", color="#f0f6fc", fontsize=11
)
ax.grid(True, color="#21262d", linewidth=0.8)
for spine in ax.spines.values():
spine.set_color("#30363d")
ax.tick_params(colors="#8b949e")
fig.suptitle(
"Transformer geometry after training",
color="#f0f6fc",
fontweight="bold",
fontsize=13,
)
plt.tight_layout()
plt.savefig(img_file, dpi=150)
return img_file
mo.image(build_geometry_plots(), width=750)
Causal attention (left). Each cell \([i, j]\) is the weight that query position \(i\) places on key position \(j\) after training. The upper triangle is structurally zero — the causal mask sets those scores to \(-\infty\) before softmax, so the model cannot attend to future tokens. What remains in the lower triangle encodes a learned strategy: which past positions does each position find useful for predicting the next character?
A strong diagonal means each position mostly attends to itself — the token at position \(i\) is the best predictor of the token at \(i+1\), so the model routes information straight through without mixing. Off-diagonal concentration in the lower-left means positions are reaching back further into context — the model has found that an earlier character (not just the immediate predecessor) is most informative for some transitions. Both patterns can coexist within the same attention head across different positions.
Character embedding geometry (right). The 27 learned character embeddings projected to their first two principal components. Because the phrase is a pangram, every character appears at least once. Characters that appear in similar left- and right-neighbour contexts tend to be placed nearby — gradient descent pulls together characters whose embedding must produce similar query-key-value behaviour to minimise loss.
The space character often sits apart: it is the only character that can follow any word
without constraint, and every word boundary produces a space, so its distributional
context is unlike any letter. Letters that only appear once in the phrase (like q, x,
z) tend to sit at the periphery, their embeddings shaped by a single context window
rather than many overlapping ones.
Sliding Window

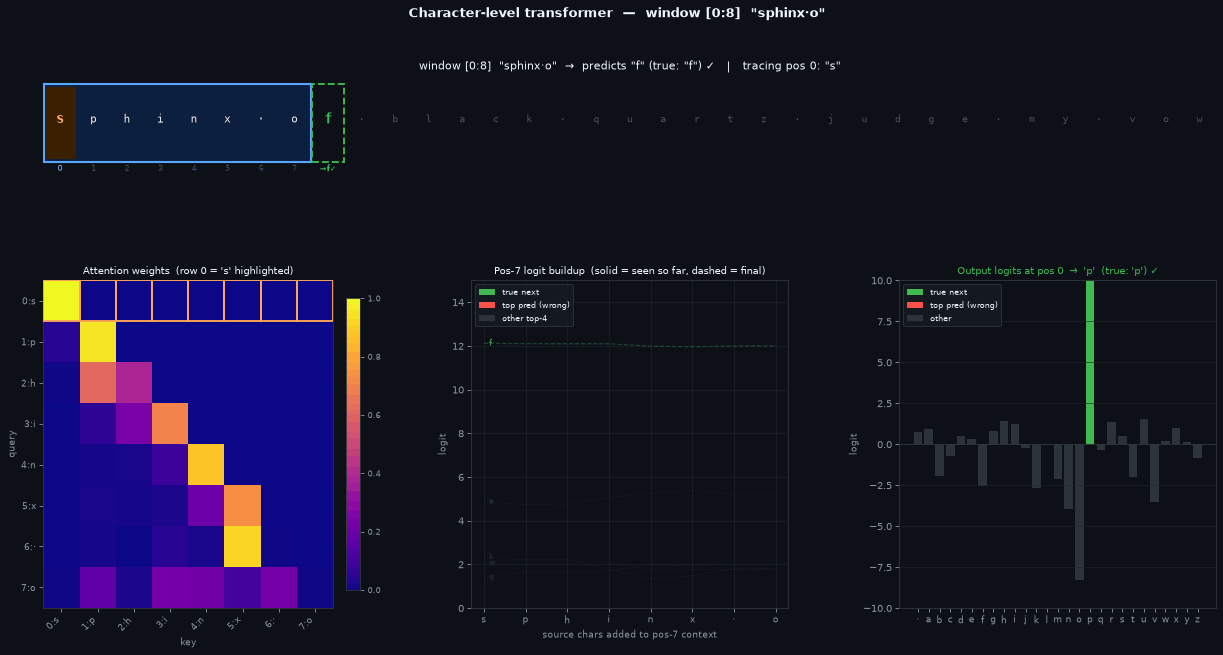

The animation below shows the model reading the phrase from left to right. An 8-character window slides across all 28 positions in the phrase; within each window, the traced position sweeps from left to right through all 8 slots.
Each frame fixes one window and one traced position. The top strip shows the full phrase — the window is boxed in blue, the currently traced character is highlighted in orange. The bottom panels show what the model computes for that position.
def build_sequence_trace_gif():
img_file = mo.notebook_dir() / "transformer_trace.gif"
SEQ_LEN = 8
phrase_len = len(phrase)
n_windows = phrase_len - SEQ_LEN # 27 windows so target char always in bounds
bg = "#0d1117"
frames = []
for win_start in range(n_windows):
win_chars = [phrase[win_start + i] for i in range(SEQ_LEN)]
flat = torch.tensor(
[token_lookup[phrase[win_start + i]] for i in range(SEQ_LEN)],
dtype=torch.long,
)
x = flat.unsqueeze(0)
with torch.no_grad():
tok = model.embedding(x)
pos_emb = model.position_embedding(torch.arange(SEQ_LEN))
emb = tok + pos_emb
Q = model.W_q(emb)
K = model.W_k(emb)
V = model.W_v(emb)
scores = (Q @ K.transpose(-2, -1)) / (model.ndim**0.5)
scores = scores.masked_fill(model.causal_mask, float("-inf"))
attn_w = scores.softmax(dim=-1)
attn_o = attn_w @ V
s1 = model.norm1(emb + model.attn_projection(attn_o))
s2 = model.norm2(s1 + model.ffn(s1))
logits_all = model.out(s2)[0]
attn_w_np = attn_w[0].numpy()
logits_np = logits_all.numpy()
V_np = V[0].numpy()
emb_np = emb[0].numpy()
# position-7 prediction is the window's actual inference output
target_char = phrase[win_start + SEQ_LEN]
target_true_idx = token_lookup[target_char]
pos7_pred_idx = int(np.argmax(logits_np[SEQ_LEN - 1]))
pos7_correct = pos7_pred_idx == target_true_idx
target_col = "#3fb950" if pos7_correct else "#f85149"
target_display = "·" if target_char == " " else target_char
pos7_pred_display = (
"·" if lookup_token[pos7_pred_idx] == " " else lookup_token[pos7_pred_idx]
)
# buildup for position 7 (full context) — computed once per window
buildup_full = []
emb_7 = torch.from_numpy(emb_np[SEQ_LEN - 1].astype(np.float32))
for k in range(SEQ_LEN):
cum_val = torch.from_numpy(
(attn_w_np[SEQ_LEN - 1, :k + 1, None] * V_np[:k + 1]).sum(0).astype(np.float32)
)
with torch.no_grad():
s1_p = model.norm1(emb_7 + model.attn_projection(cum_val))
s2_p = model.norm2(s1_p + model.ffn(s1_p))
buildup_full.append(model.out(s2_p).numpy())
buildup_full = np.array(buildup_full) # [8, n_letters]
# line specs fixed for the window: based on position-7's final prediction
ranked = np.argsort(buildup_full[-1])[::-1]
highlight = {target_true_idx, pos7_pred_idx}
others = [i for i in ranked if i not in highlight][:4]
line_specs = (
[(target_true_idx, "#3fb950", 2.2)]
+ ([(pos7_pred_idx, "#f85149", 2.2)] if pos7_pred_idx != target_true_idx else [])
+ [(i, "#2d333b", 0.9) for i in others]
)
for T in range(SEQ_LEN):
true_idx = token_lookup[phrase[(win_start + T + 1) % phrase_len]]
pred_idx = int(np.argmax(logits_np[T]))
logits_t = logits_np[T]
fig = plt.figure(figsize=(17, 9))
fig.patch.set_facecolor(bg)
gs = fig.add_gridspec(
2, 3,
height_ratios=[1, 3.2],
hspace=0.48, wspace=0.35,
top=0.88, bottom=0.09, left=0.05, right=0.97,
)
# ── top strip: full phrase with sliding window ─────────
ax_p = fig.add_subplot(gs[0, :])
ax_p.set_facecolor(bg)
ax_p.set_xlim(-0.5, phrase_len - 0.5)
ax_p.set_ylim(-0.85, 0.75)
ax_p.axis("off")
ax_p.add_patch(Rectangle(
(win_start - 0.48, -0.62), SEQ_LEN - 0.04, 1.22,
linewidth=2.0, edgecolor="#58a6ff", facecolor="#0c1f3e", zorder=1,
))
ax_p.add_patch(Rectangle(
(win_start + T - 0.46, -0.57), 0.92, 1.12,
linewidth=0, facecolor="#3b2000", zorder=2,
))
ax_p.add_patch(Rectangle(
(win_start + SEQ_LEN - 0.48, -0.62), 0.96, 1.22,
linewidth=1.8, edgecolor=target_col, facecolor="none",
linestyle="--", zorder=4,
))
for i, c in enumerate(phrase):
in_win = win_start <= i < win_start + SEQ_LEN
is_traced = i == win_start + T
is_target = i == win_start + SEQ_LEN
if is_traced:
col, sz, wt = "#ffa657", 13, "bold"
elif is_target:
col, sz, wt = target_col, 13, "bold"
elif in_win:
col, sz, wt = "#e6edf3", 11, "normal"
else:
col, sz, wt = "#484f58", 10, "normal"
ax_p.text(
i, 0.05, "·" if c == " " else c,
ha="center", va="center",
color=col, fontsize=sz, fontweight=wt,
fontfamily="monospace", zorder=3,
)
for k in range(SEQ_LEN):
ax_p.text(
win_start + k, -0.72, str(k),
ha="center", va="center",
color="#58a6ff" if k == T else "#2d4f7c",
fontsize=7.5, zorder=3,
)
ax_p.text(
win_start + SEQ_LEN, -0.72,
f"→{pos7_pred_display}{'✓' if pos7_correct else '✗'}",
ha="center", va="center",
color=target_col, fontsize=7.5, fontweight="bold", zorder=3,
)
win_str = "".join("·" if c == " " else c for c in win_chars)
traced_c = "·" if win_chars[T] == " " else win_chars[T]
ax_p.set_title(
f'window [{win_start}:{win_start + SEQ_LEN}] "{win_str}"'
f' → predicts "{pos7_pred_display}" (true: "{target_display}") {"✓" if pos7_correct else "✗"}'
f' | tracing pos {T}: "{traced_c}"',
color="#f0f6fc", fontsize=11, pad=5,
)
# ── bottom left: full 8×8 attention heatmap ───────────
ax_a = fig.add_subplot(gs[1, 0])
ax_a.set_facecolor(bg)
im = ax_a.imshow(attn_w_np, cmap="plasma", vmin=0, vmax=1, aspect="auto")
for c in range(SEQ_LEN):
ax_a.add_patch(Rectangle(
(c - 0.5, T - 0.5), 1, 1,
fill=False, edgecolor="#ffa657", lw=1.8, zorder=5,
))
tick_labels = [
f"{k}:{'·' if win_chars[k] == ' ' else win_chars[k]}"
for k in range(SEQ_LEN)
]
ax_a.set_xticks(range(SEQ_LEN))
ax_a.set_xticklabels(tick_labels, fontsize=9, color="#8b949e", rotation=45, ha="right")
ax_a.set_yticks(range(SEQ_LEN))
ax_a.set_yticklabels(tick_labels, fontsize=9, color="#8b949e")
ax_a.set_xlabel("key", color="#8b949e", fontsize=9)
ax_a.set_ylabel("query", color="#8b949e", fontsize=9)
ax_a.set_title(
f"Attention weights (row {T} = '{traced_c}' highlighted)",
color="#f0f6fc", fontsize=10,
)
ax_a.tick_params(colors="#8b949e")
for sp in ax_a.spines.values():
sp.set_color("#30363d")
cb = fig.colorbar(im, ax=ax_a, fraction=0.046, pad=0.04)
cb.ax.tick_params(colors="#8b949e", labelsize=8)
cb.outline.set_edgecolor("#30363d")
# ── bottom middle: context buildup (position 7, fixed axes) ──
ax_b = fig.add_subplot(gs[1, 1])
ax_b.set_facecolor(bg)
xs_full = np.arange(SEQ_LEN)
for vocab_i, lc, lw in line_specs:
# dashed reference — full 8-step final state
ax_b.plot(xs_full, buildup_full[:, vocab_i],
color=lc, lw=max(lw * 0.5, 0.6), linestyle="--", alpha=0.35, zorder=2)
# solid line growing left to right as T increases
ax_b.plot(xs_full[:T + 1], buildup_full[:T + 1, vocab_i],
color=lc, lw=lw, zorder=3)
# label at the current leading edge
char_lbl = "·" if lookup_token[vocab_i] == " " else lookup_token[vocab_i]
ax_b.annotate(
char_lbl, (T, buildup_full[T, vocab_i]),
xytext=(5, 0), textcoords="offset points",
fontsize=8, color=lc, va="center",
)
ax_b.set_xticks(xs_full)
ax_b.set_xticklabels(
["·" if c == " " else c for c in win_chars],
fontsize=9, color="#8b949e",
)
ax_b.set_xlim(-0.3, SEQ_LEN - 0.7)
ax_b.set_ylim(0, 15)
ax_b.set_xlabel("source chars added to pos-7 context", color="#8b949e", fontsize=9)
ax_b.set_ylabel("logit", color="#8b949e", fontsize=9)
ax_b.set_title(
"Pos-7 logit buildup (solid = seen so far, dashed = final)",
color="#f0f6fc", fontsize=10,
)
ax_b.axhline(0, color="#30363d", lw=0.8)
ax_b.tick_params(colors="#8b949e")
ax_b.grid(True, color="#21262d", lw=0.5)
for sp in ax_b.spines.values():
sp.set_color("#30363d")
ax_b.legend(
handles=[
Patch(facecolor="#3fb950", label="true next"),
Patch(facecolor="#f85149", label="top pred (wrong)"),
Patch(facecolor="#2d333b", label="other top-4"),
],
loc="upper left",
fontsize=8, facecolor="#161b22", edgecolor="#30363d", labelcolor="#f0f6fc",
)
# ── bottom right: final output logits ─────────────────
ax_l = fig.add_subplot(gs[1, 2])
ax_l.set_facecolor(bg)
bar_colors = [
"#3fb950" if i == true_idx else
"#f85149" if i == pred_idx and i != true_idx else
"#2d333b"
for i in range(n_letters)
]
ax_l.bar(range(n_letters), logits_t, color=bar_colors, linewidth=0)
ax_l.set_xticks(range(n_letters))
ax_l.set_xticklabels(
["·" if lookup_token[i] == " " else lookup_token[i] for i in range(n_letters)],
fontsize=9, color="#8b949e",
)
ax_l.axhline(0, color="#30363d", lw=0.8)
pred_c = "·" if lookup_token[pred_idx] == " " else lookup_token[pred_idx]
true_c = "·" if lookup_token[true_idx] == " " else lookup_token[true_idx]
correct = pred_idx == true_idx
ax_l.set_title(
f"Output logits at pos {T} → '{pred_c}' (true: '{true_c}') "
+ ("✓" if correct else "✗"),
color="#3fb950" if correct else "#f85149", fontsize=10,
)
ax_l.set_ylim(-10, 10)
ax_l.set_ylabel("logit", color="#8b949e", fontsize=9)
ax_l.tick_params(colors="#8b949e")
ax_l.grid(True, axis="y", color="#21262d", lw=0.5)
for sp in ax_l.spines.values():
sp.set_color("#30363d")
ax_l.legend(
handles=[
Patch(facecolor="#3fb950", label="true next"),
Patch(facecolor="#f85149", label="top pred (wrong)"),
Patch(facecolor="#2d333b", label="other"),
],
loc="upper left",
fontsize=8, facecolor="#161b22", edgecolor="#30363d", labelcolor="#f0f6fc",
)
fig.suptitle(
f'Character-level transformer — window [{win_start}:{win_start + SEQ_LEN}] "{win_str}"',
color="#f0f6fc", fontweight="bold", fontsize=12,
)
buf = io.BytesIO()
plt.savefig(buf, format="png", bbox_inches="tight", dpi=75)
buf.seek(0)
frames.append(Image.open(buf).convert("RGB"))
buf.close()
plt.close(fig)
frames[0].save(
img_file,
save_all=True,
append_images=frames[1:],
loop=0,
duration=300,
format="GIF",
)
return img_file
mo.image(build_sequence_trace_gif(), width=950)
Top strip — phrase with sliding window. The full 35-character phrase is shown as a fixed ruler. The solid blue box marks the 8-character input window; the orange highlight marks the currently traced character. The dashed box immediately to the right of the window is the inference target — the 9th character the window must predict. It is coloured green when position 7’s argmax matches it and red when it does not; the annotation below shows what the model actually predicted. Position indices 0–7 below the window tell you where in the context each character sits.
Bottom-left — causal attention heatmap. The full 8×8 attention weight matrix for the current window. Row \(i\) is the softmax distribution that position \(i\) uses to blend past value vectors; column \(j\) is how much weight that position places on position \(j\). The upper triangle is always zero — the causal mask prevents any position from seeing tokens that come after it. The orange box follows the traced position row-by-row as the inner sweep advances. The matrix itself is static within a window and only changes when the window slides.
Bottom-middle — position-7 logit buildup. This panel always shows position 7 — the last slot in the window, which makes the final next-character prediction. The x-axis is the 8 source characters; both axes are fixed for the entire window so nothing jumps between inner frames. The dashed lines are the complete 8-step trajectory (computed once per window): they show where each character’s logit ends up after the full context has been assembled. The solid lines grow from left to right one step per frame, tracing how much of that trajectory has been “explained” so far. When the solid green line reaches the dashed green endpoint, position 7 has incorporated all available context and committed to its prediction.
Bottom-right — output logits. The logit vector at the currently traced position after the complete forward pass. Green marks the true next character; red marks the top prediction when it is wrong. A tall isolated green bar means the model is confident and correct; a flat distribution means it is uncertain.
